968, Binary Tree Cameras

MikeAbout 3 min

I Problem

You are given the root of a binary tree. We install cameras on the tree nodes where each camera at a node can monitor its parent, itself, and its immediate children.

Return the minimum number of cameras needed to monitor all nodes of the tree.

Example 1

Input: root = [0, 0, null, 0, 0]
Output: 1
Explanation: One camera is enough to monitor all nodes if placed as shown.

Example 2

Input: root = [0, 0, null, 0, null, 0, null, null, 0]
Output: 2

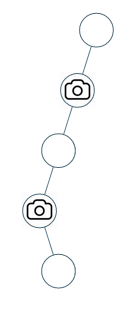

Explanation: At least two cameras are needed to monitor all nodes of the tree. The above image shows one of the valid configurations of camera placement.

Constraints

The number of nodes in the tree is in the range [1, 1000].
Node.val == 0

Related Topics

Tree
Depth-First Search
Dynamic Programming
Binary Tree

II Solution

#[derive(Debug, PartialEq, Eq)]
pub struct TreeNode {
    pub val: i32,
    pub left: Option<Rc<RefCell<TreeNode>>>,
    pub right: Option<Rc<RefCell<TreeNode>>>,
}

impl TreeNode {
    #[inline]
    pub fn new(val: i32) -> Self {
        TreeNode {
            val,
            left: None,
            right: None,
        }
    }
}

public class TreeNode {
    int val;
    TreeNode left;
    TreeNode right;

    TreeNode() {}
    TreeNode(int val) { this.val = val; }
    TreeNode(int val, TreeNode left, TreeNode right) {
        this.val = val;
        this.left = left;
        this.right = right;
    }
}

type TreeNode struct {
    Val   int
    Left  *TreeNode
    Right *TreeNode
}

Approach 1: Dynamic Programming

pub fn min_camera_cover(root: Option<Rc<RefCell<TreeNode>>>) -> i32 {
    const DFS: fn(Option<Rc<RefCell<TreeNode>>>) -> (i32, i32, i32) =
        |root| match root {
            None => (i32::MAX / 2, 0, 0),
            Some(curr) => {
                let (la, lb, lc) = DFS(curr.borrow_mut().left.take());
                let (ra, rb, rc) = DFS(curr.borrow_mut().right.take());

                // 状态a：`root`必须放置摄像头的情况下，覆盖整棵树需要的摄像头数目。
                // 状态b：覆盖整棵树需要的摄像头数目，无论`root`是否放置摄像头。
                // 状态c：覆盖两棵子树需要的摄像头数目，无论节点`root`本身是否被监控到。
                let a = lc + rc + 1;
                let b = min(a, min(la + rb, ra + lb));
                let c = min(a, lb + rb);

                (a, b, c)
            }
        };

    DFS(root).1
}

Function<TreeNode, int[]> dfs1 = (root) -> {
    if (root == null) {
        return new int[]{Integer.MAX_VALUE / 2, 0, 0};
    }

    int[] left = this.dfs1.apply(root.left);
    int[] right = this.dfs1.apply(root.right);

    // 状态a：`root`必须放置摄像头的情况下，覆盖整棵树需要的摄像头数目。
    // 状态b：覆盖整棵树需要的摄像头数目，无论`root`是否放置摄像头。
    // 状态c：覆盖两棵子树需要的摄像头数目，无论节点`root`本身是否被监控到。
    int a = left[2] + right[2] + 1;
    int b = Math.min(a, Math.min(left[0] + right[1], right[0] + left[1]));
    int c = Math.min(a, left[1] + right[1]);

    return new int[]{a, b, c};
};

public int minCameraCover(TreeNode root) {
    return this.dfs1.apply(root)[1];
}

func minCameraCover(root *TreeNode) int {
    var dfs func(*TreeNode) (int, int, int)
    dfs = func(root *TreeNode) (int, int, int) {
        if root == nil {
            return math.MaxInt / 2, 0, 0
        }

        la, lb, lc := dfs(root.Left)
        ra, rb, rc := dfs(root.Right)

        // 状态a：`root`必须放置摄像头的情况下，覆盖整棵树需要的摄像头数目。
        // 状态b：覆盖整棵树需要的摄像头数目，无论`root`是否放置摄像头。
        // 状态c：覆盖两棵子树需要的摄像头数目，无论节点`root`本身是否被监控到。
        a := lc + rc + 1
        b := min(a, min(la+rb, ra+lb))
        c := min(a, lb+rb)

        return a, b, c
    }

    _, b, _ := dfs(root)

    return b
}

Approach 2: Greedy

pub fn min_camera_cover(root: Option<Rc<RefCell<TreeNode>>>) -> i32 {
    const DFS: fn(Option<Rc<RefCell<TreeNode>>>, &mut i32) -> i32 =
        |root, res| match root {
            None => 2,
            Some(curr) => {
                let left = DFS(curr.borrow_mut().left.take(), res);
                let right = DFS(curr.borrow_mut().right.take(), res);

                if left == 2 && right == 2 {
                    return 0;
                }

                if left == 0 || right == 0 {
                    *res += 1;
                    return 1;
                }

                if left == 1 || right == 1 {
                    return 2;
                }

                -1
            }
        };

    let mut res = 0;
    // 0：this node is not monitored
    // 1：a camera is installed on this node
    // 2：this node is monitored
    if DFS(root, &mut res) == 0 {
        res += 1;
    }

    res
}

BiFunction<TreeNode, int[], Integer> dfs2 = (root, res) -> {
    if (root == null) {
        return 2;
    }

    int left = this.dfs2.apply(root.left, res);
    int right = this.dfs2.apply(root.right, res);

    if (left == 2 && right == 2) {
        return 0;
    }

    if (left == 0 || right == 0) {
        res[0]++;
        return 1;
    }

    if (left == 1 || right == 1) {
        return 2;
    }

    return -1;
};

public int minCameraCover(TreeNode root) {
    int[] res = new int[]{0};
    // 0：this node is not monitored
    // 1：a camera is installed on this node
    // 2：this node is monitored
    if (this.dfs2.apply(root, res) == 0) {
        res[0]++;
    }

    return res[0];
}

func minCameraCover(root *TreeNode) int {
    var dfs func(*TreeNode, *int) int
    dfs = func(root *TreeNode, res *int) int {
        if root == nil {
            return 2
        }

        left := dfs(root.Left, res)
        right := dfs(root.Right, res)

        if left == 2 && right == 2 {
            return 0
        }

        if left == 0 || right == 0 {
            *res++
            return 1
        }

        if left == 1 || right == 1 {
            return 2
        }

        return -1
    }

    res := 0
    // 0：this node is not monitored
    // 1：a camera is installed on this node
    // 2：this node is monitored
    if dfs(root, &res) == 0 {
    	res++
    }

    return res
}
